OV7670 Camera Module for Arduino, ESP32, STM32 & Embedded Vision Projects | VGA CMOS Camera Sensor
Capture images for embedded vision and IoT projects with the OV7670 VGA Camera Module. Compatible with Arduino, ESP32, STM32, FPGA, and supported Raspberry Pi projects, this compact CMOS camera sensor delivers VGA resolution and is ideal for image processing, robotics, computer vision experiments, surveillance prototypes, and educational electronics projects.
Customize
Share :

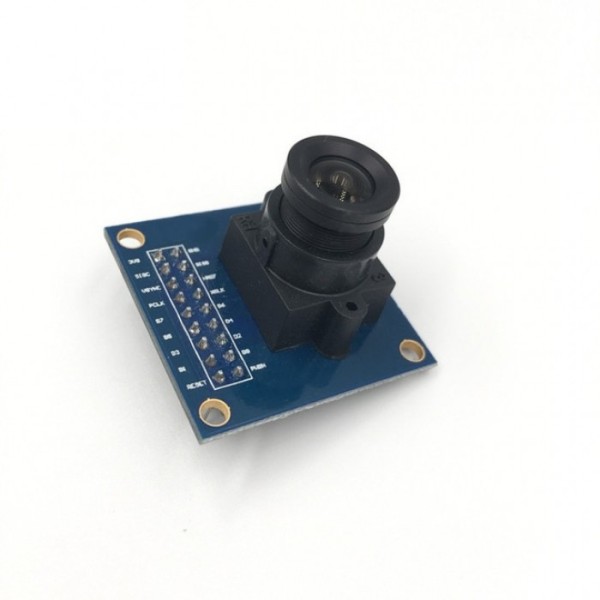

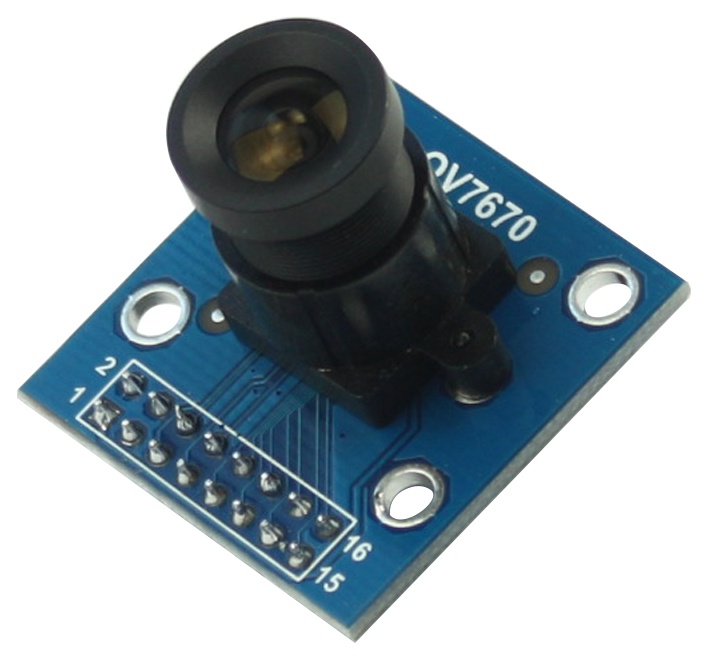

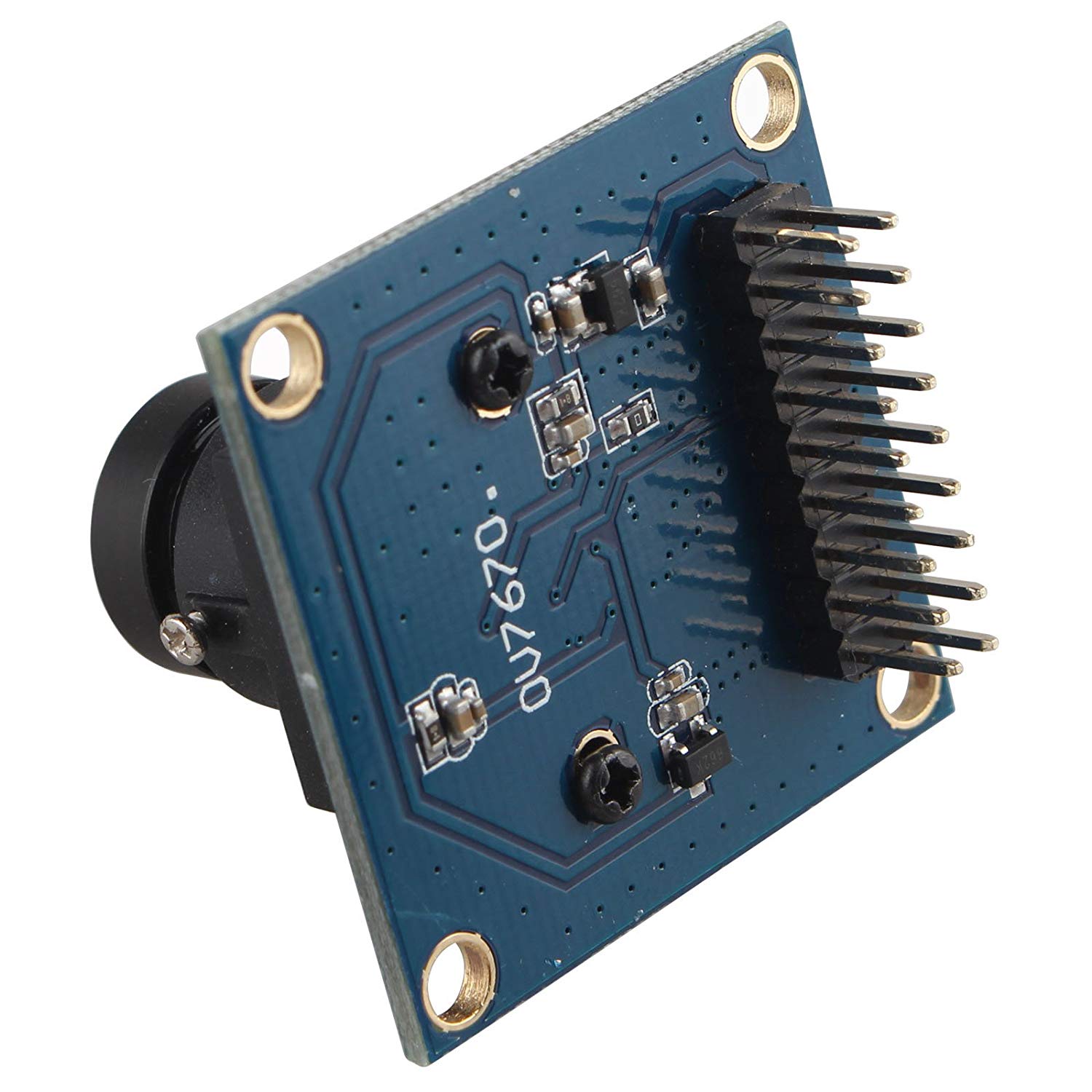

OV7670 VGA Camera Module for Arduino, ESP32 & Embedded Systems
The OV7670 Camera Module is a compact VGA CMOS image sensor designed for embedded vision, image acquisition, and microcontroller-based applications. It is widely used by students, makers, researchers, and engineers to develop projects involving computer vision, robotics, image processing, surveillance, automation, and IoT.
The module features the OmniVision OV7670 CMOS image sensor, capable of capturing images at 640 × 480 (VGA) resolution. It communicates through a parallel camera interface and can be integrated with Arduino (advanced projects), ESP32, STM32, FPGA, and other compatible development platforms.
Its small size, low power consumption, and flexible interface make it an excellent choice for learning embedded imaging and developing custom vision-based applications.
Key Features
- OV7670 CMOS VGA camera module
- VGA image resolution (640 × 480)
- Compact and lightweight design
- Low power consumption
- Parallel camera interface
- Supports real-time image capture
- Compatible with ESP32, STM32, FPGA, and advanced Arduino projects
- Suitable for computer vision and robotics
- Ideal for embedded imaging and STEM education
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Camera Module |
| Image Sensor | OmniVision OV7670 CMOS |
| Resolution | VGA (640 × 480) |
| Output Interface | Parallel Camera Interface |
| Operating Voltage | 3.3V DC |
| Image Format | RGB, YUV, Bayer (depending on configuration) |
| Lens | Fixed Focus |
| Compatibility | ESP32, STM32, FPGA, Arduino (advanced projects), Compatible Embedded Platforms |
Applications
- Embedded Vision Systems
- Computer Vision Projects
- Robotics
- Image Processing
- Face Detection Research
- Smart Automation
- Object Recognition Experiments
- IoT Applications
- Security Prototypes
- Educational Electronics
- STEM Learning
- Engineering Projects
Package Includes
- 1 × OV7670 VGA Camera Module
Why Buy from Horizocart?
- Quality-tested camera modules
- Reliable CMOS image sensor
- Secure packaging
- Fast shipping across India
- Technical support
- Suitable for students, makers, engineers, and professionals
Frequently Asked Questions
Q. Is this compatible with Arduino Uno?
The OV7670 can be interfaced with Arduino Uno for basic image capture experiments, but due to the Uno's limited memory and processing power, it is better suited to more capable platforms such as ESP32, STM32, or FPGA boards.
Q. Can I use it with ESP32?
Yes. The OV7670 is commonly used with ESP32 in embedded vision and image processing projects, provided the software and pin configuration support the module.
Q. What resolution does the camera support?
The module supports VGA resolution (640 × 480 pixels).
Q. Does it support Raspberry Pi?
This module is designed for a parallel camera interface. Raspberry Pi projects typically use the official Raspberry Pi Camera Module through the CSI interface, so compatibility depends on the hardware and software used.
Q. Is this suitable for computer vision projects?
Yes. It is widely used in educational and research projects involving embedded vision, image processing, and robotics.
