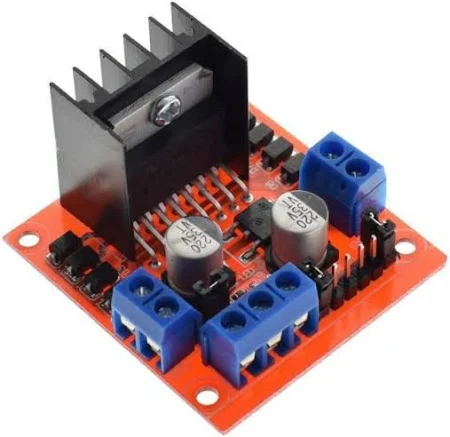

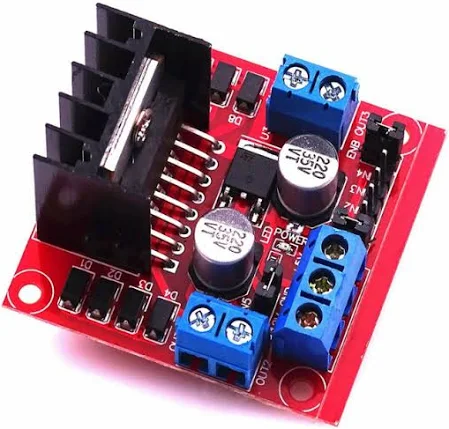

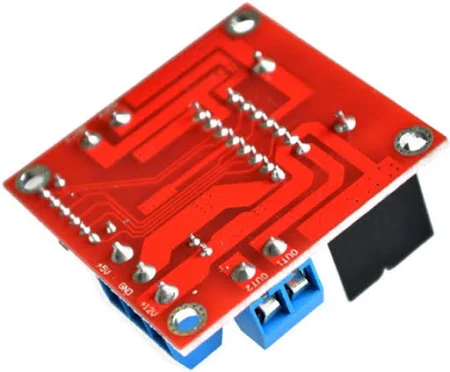

L298N Dual H-Bridge Motor Driver Module for Arduino, ESP32 & Raspberry Pi
The L298N Motor Driver Module is one of the most widely used motor control modules for robotics and embedded electronics. Based on the L298N Dual H-Bridge Motor Driver IC, it enables microcontrollers to control the direction and speed of two DC motors or one bipolar stepper motor with ease.
The module features onboard screw terminals for secure motor connections, a built-in 5V voltage regulator (module version dependent), and PWM support for smooth speed control. It interfaces easily with Arduino, ESP32, Raspberry Pi, NodeMCU, STM32, and other development platforms, making it suitable for educational projects, automation systems, robotic vehicles, and industrial prototypes.
Whether you're building an obstacle avoidance robot, line follower, robotic arm, conveyor controller, or smart automation system, the L298N Motor Driver Module provides dependable motor control with simple integration.
Key Features
- Based on the L298N Dual H-Bridge motor driver IC
- Controls two DC motors independently
- Supports one bipolar stepper motor
- Bidirectional motor direction control
- PWM speed control support
- High-current motor driving capability
- Onboard 5V voltage regulator (module version dependent)
- Screw terminals for secure wiring
- Compatible with Arduino, ESP32, Raspberry Pi, NodeMCU, STM32, AVR, and PIC
- Ideal for robotics, automation, and embedded projects
- Easy integration with popular development boards
- Suitable for educational, DIY, and industrial prototype applications
Technical Specifications
| Specification | Details |
|---|
| Product Type | L298N Dual H-Bridge Motor Driver Module |
| Motor Driver IC | L298N |
| Motor Channels | 2 DC Motors or 1 Stepper Motor |
| Motor Direction Control | Bidirectional |
| Speed Control | PWM Supported |
| Logic Voltage | 5V |
| Motor Supply Voltage | Typically 5V–35V |
| Maximum Output Current | Up to 2A per channel |
| Voltage Regulator | Onboard 5V Regulator |
| Interface | Digital GPIO |
| Compatibility | Arduino, ESP32, Raspberry Pi, NodeMCU, STM32, AVR, PIC |
|
|
Applications
- Robot Cars
- Line Following Robots
- Obstacle Avoidance Robots
- Robotic Arms
- Smart Vehicles
- Conveyor Belt Systems
- CNC Learning Projects
- Industrial Automation
- Motorized Prototypes
- IoT Projects
- Engineering Projects
- STEM Education
Package Includes
- 1 × L298N Dual H-Bridge Motor Driver Module
Why Buy from Horizocart?
- Quality-tested motor driver modules
- Reliable motor control performance
- Secure packaging for safe delivery
- Fast shipping across India
- Technical support for makers, students, and engineers
- Trusted supplier of Arduino, ESP32, Raspberry Pi, robotics, and IoT components
- Ideal for educational, DIY, and industrial prototype applications
Frequently Asked Questions
Q. Is the L298N compatible with Arduino Uno?
Yes. The module works seamlessly with Arduino Uno, Nano, Mega, and other Arduino-compatible development boards.
Q. Can I use the L298N with ESP32?
Yes. The L298N is fully compatible with ESP32 and can be controlled using standard digital GPIO and PWM pins.
Q. How many motors can this module control?
The L298N can independently control two DC motors or one bipolar stepper motor.
Q. Does the module support PWM speed control?
Yes. PWM signals can be applied to the enable pins for smooth motor speed control.
Q. Is this module suitable for robotics projects?
Absolutely. It is one of the most widely used motor driver modules for robot cars, automation systems, robotic arms, and educational robotics.
