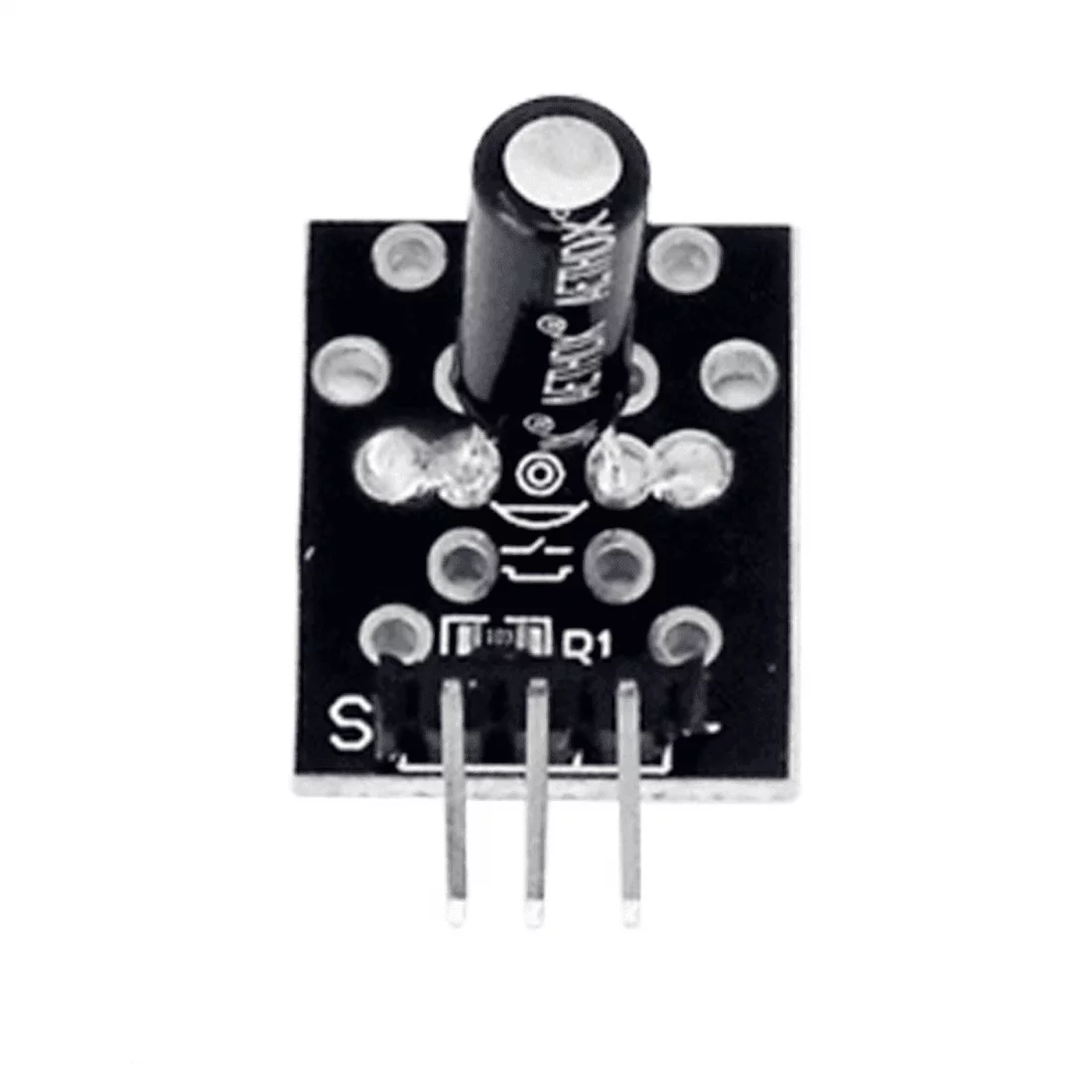

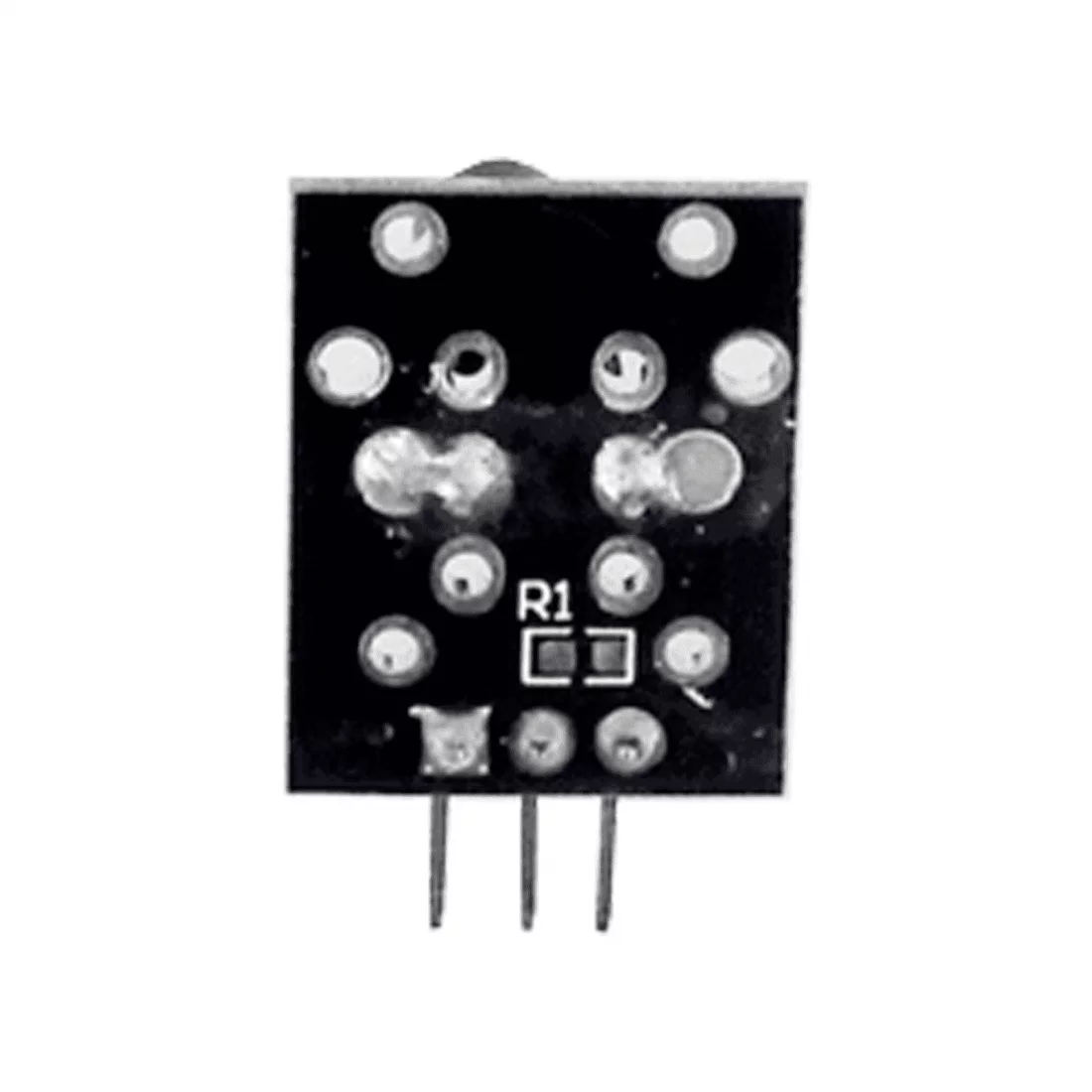

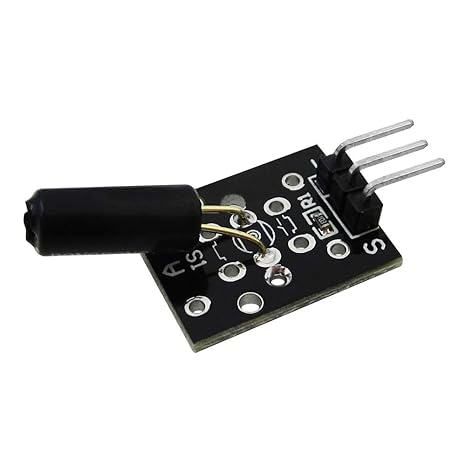

Vibration/Shock Detection Sensor Module – SW-18010P
A compact vibration/shock sensor module that detects physical impacts or movement—ideal for alarm systems, motion-sensitive devices, and Arduino projects.
Share :
The Shock Sensor Module (SW-18010P) is a vibration detection component used to sense physical shocks, vibrations, or impacts in electronics projects. Based on a spring-type sensor switch, it outputs a digital signal when vibration or shock is detected, making it suitable for alarms, interactive systems, anti-theft devices, and motion-triggered automation.
This module operates at 3.3V to 5V and features a digital output that can be directly connected to Arduino, ESP32, Raspberry Pi, and other microcontrollers. It includes onboard components like a pull-up resistor and indicator LED, ensuring stable operation and easy integration. Its small form factor and 3-pin interface (VCC, GND, D0) make it ideal for breadboarding and embedded systems.
Key Features:
✔️ Detects physical vibration or shock
✔️ Based on SW-18010P spring-type vibration sensor
✔️ Digital output signal
✔️ Operating voltage: 3.3V – 5V
✔️ 3-pin interface: VCC, GND, D0 (Digital Output)
✔️ Onboard LED for signal indication
✔️ Compatible with Arduino, Raspberry Pi, ESP8266, ESP32
✔️ Ideal for anti-theft alarms, smart appliances, DIY robotics
